Deatschwerks DW400 Pump Module and Return Kit SS PTFE Chevy Silverado/GMC Sierra 1500/2500/3500 1999-2004

Deatschwerks DW400 Pump Module and Return Kit SS PTFE Chevy Silverado/GMC Sierra 1500/2500/3500 1999-2004
Deatschwerks DW400 Pump Module and Return Kit SS PTFE Chevy Silverado/GMC Sierra 1500/2500/3500 1999-2004
  • RRP: €1.409,43 (incl. BTW)
  • Excl. BTW: €1.164,82
-+ Bestellen
Verlanglijst Product vergelijk

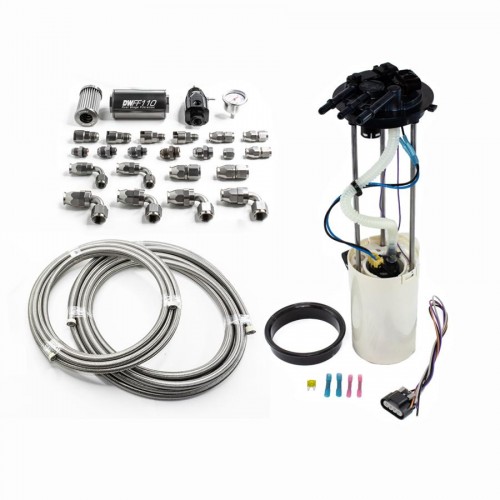

The DW400 99-04 GM Truck Module is a complete plug-nplay replacement for the OE unit.  The module incorporates the DW400 pump which more than doubles the flow output of the OE module. This module also integrates seamlessly with the OE wiring harness and level sender. The module includes a return plumbing kit with 8AN feed and 6AN return lines, a DWR1000 regulator, fuel pressure gauge, and DW 110mm 10-micron stainless steel fuel filter.


Specs:

  • Wire Harness 14ga Replacement Pigtail Included
  • Fuel Compatibility Gasoline and Ethanol
  • Regulator: DWR1000 Black
  • Low Level Pickup: Return Fed Bucket
  • AN Line: Stainless Steel Braid CPE or PTFE
  • Rated Working Press: 3-7 BAR (43-100 psi)
  • In-Line Filtration: 10µm DW110 Stainless Steel
  • Feed/Return Lines: 8AN Feed, 6AN Return
  • In-Module Filtration: Module Integrated 100µm Pre-Filter
  • Fuel Level Sender: 250-40Ω (Empty-Full)
  • Powered by the 415LPH DW400 Bosch pump
  • Supports 800+ HP (pump gas)
  • Return filled bucket for low level pick up
  • Integrated filtration pre and post pump
  • Retains OE-compatible fuel level sender
  • Full AN stainless steel return plumbing kit included

      On some installations, the clocking tab will need to be removed to install module in tank.
